Reversible 50mm Dia 12V 24V DC Gear Motor 3500rpm 4nm 5nm 35kgfcm 25w

Brand Name : TYHE

Model Number : TJP50RO

Certification : CE/ROHS/ISO9001

Place of Origin : China

MOQ : 500pcs

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 15 working days after payment

Packaging Details : Foam wrapped, carton packed

Size : 50mm diameter

Voltage : 6-24V or customized

Speed : 100rpm 200rpm Customized

Torque : 8N.m

Gear material : Powder metallurgy, steel gears

Commutation : Brush /brushes /brushed

Type : Gear Motor, DC Micro Motor

Usage : Grill machine

Keywords : Reversible 50mm Diameter 12 v 24 volt 12v 3500rpm high speed high torque 4nm 5nm 35kgfcm 25w 20 watt dc metal gear motor with ce

Contact Now

Products Description

Reversible 50mm Diameter 12 v 24 volt 12v 3500rpm high speed high torque 4nm 5nm 35kgfcm 25w 20 watt dc metal gear motor with ce

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3864 12 6000 380 4800 1.37 20.30 10.20 62.15 60.90 7.98
ZY3864 24 5000 160 4000 0.55 19.50 8.17 61.88 58.50 3.10
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters 12V-6000RPM Input 24V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
24.3 73 12.3 390.2 7.45 182.27 546.82 325.2 5.96 175.09 525.27
24.3 73 15.5 309.7 7.45 229.69 689.08 258.1 5.96 220.64 661.93
24.3 73 19 252.6 7.45 281.56 844.68 210.5 5.96 270.47 811.40
24.3 73 19.7 243.7 7.45 291.93 875.80 203.0 5.96 280.43 841.29
24.3 73 23.9 200.8 7.45 354.17 1062.52 167.4 5.96 340.22 1020.65
24.3 73 24.3 197.5 7.45 360.10 1080.31 164.6 5.96 345.91 1037.73
24.3 73 30.5 157.4 7.45 451.98 1355.94 131.1 5.96 434.17 1302.50
24.3 73 37.5 128.0 7.45 555.71 1667.14 106.7 5.96 533.81 1601.44
28.3 65.6 44 109.1 6.69 585.94 1757.82 90.9 5.36 562.85 1688.54
28.3 65.6 55 87.3 6.69 732.42 2197.27 72.7 5.36 703.56 2110.68
28.3 65.6 68 70.6 6.69 905.54 2716.63 58.8 5.36 869.86 2609.57
28.3 65.6 71 67.6 6.69 945.49 2836.48 56.3 5.36 908.23 2724.70
28.3 65.6 86 55.8 6.69 1145.24 3435.73 46.5 5.36 1100.11 3300.34
28.3 65.6 87 55.2 6.69 1158.56 3475.68 46.0 5.36 1112.90 3338.71
28.3 65.6 109 44.0 6.69 1451.53 4354.59 36.7 5.36 1394.33 4182.98
28.3 65.6 134 35.8 6.69 1784.45 5353.35 29.9 5.36 1714.13 5142.38
32.3 59 158 30.4 6.02 1892.37 5677.10 25.3 4.82 1817.79 5453.37
32.3 59 199 24.1 6.02 2383.42 7150.27 20.1 4.82 2289.50 6868.49
32.3 59 244 19.7 6.02 2922.39 8000.00 16.4 4.82 2807.22 8000.00
32.3 59 253 19.0 6.02 3030.18 8000.00 15.8 4.82 2910.77 8000.00
32.3 59 307 15.6 6.02 3676.94 8000.00 13.0 4.82 3532.04 8000.00
32.3 59 311 15.4 6.02 3724.85 8000.00 12.9 4.82 3578.06 8000.00
32.3 59 391 12.3 6.02 4683.01 8000.00 10.2 4.82 4498.46 8000.00
32.3 59 481 10.0 6.02 5760.94 8000.00 8.3 4.82 5533.91 8000.00
35.8 53 567 8.5 5.41 6100.35 8000.00 7.1 4.33 5859.95 8000.00
35.8 53 712 6.7 5.41 7660.41 8000.00 5.6 4.33 7358.52 8000.00
35.8 53 876 5.5 5.41 8000.00 8000.00 4.6 4.33 8000.00 8000.00
35.8 53 907 5.3 5.41 8000.00 8000.00 4.4 4.33 8000.00 8000.00
35.8 53 1101 4.4 5.41 8000.00 8000.00 3.6 4.33 8000.00 8000.00
35.8 53 1116 4.3 5.41 8000.00 8000.00 3.6 4.33 8000.00 8000.00
35.8 53 1401 3.4 5.41 8000.00 8000.00 2.9 4.33 8000.00 8000.00
35.8 53 1725 2.8 5.41 8000.00 8000.00 2.3 4.33 8000.00 8000.00

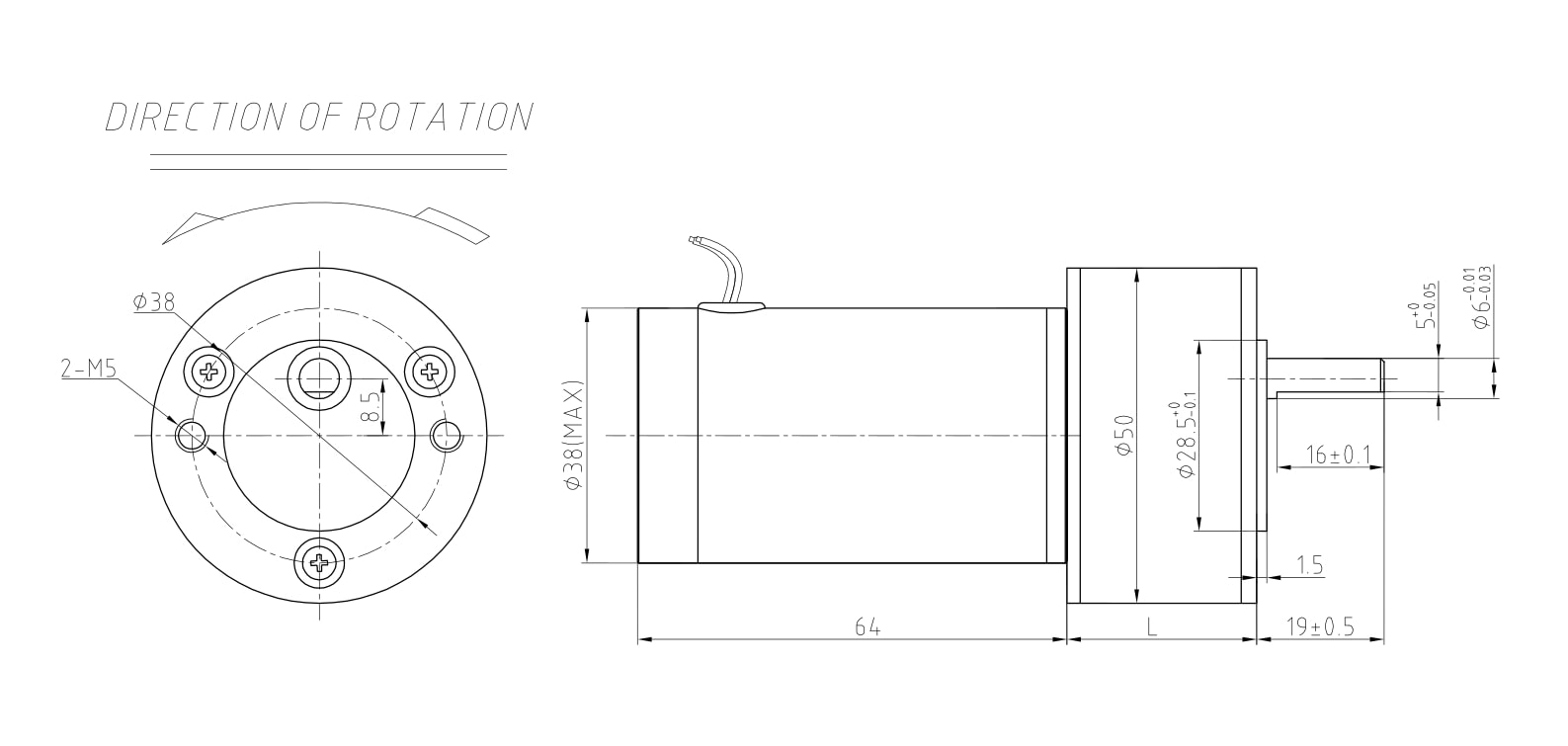

2D drawing

Reversible 50mm Dia 12V 24V DC Gear Motor 3500rpm 4nm 5nm 35kgfcm 25w


Reversible 50mm Dia 12V 24V DC Gear Motor 3500rpm 4nm 5nm 35kgfcm 25w

Please let us know your requirements and we will provide you with transmission solutions.

Reversible 50mm Dia 12V 24V DC Gear Motor 3500rpm 4nm 5nm 35kgfcm 25w

Reversible 50mm Dia 12V 24V DC Gear Motor 3500rpm 4nm 5nm 35kgfcm 25w
